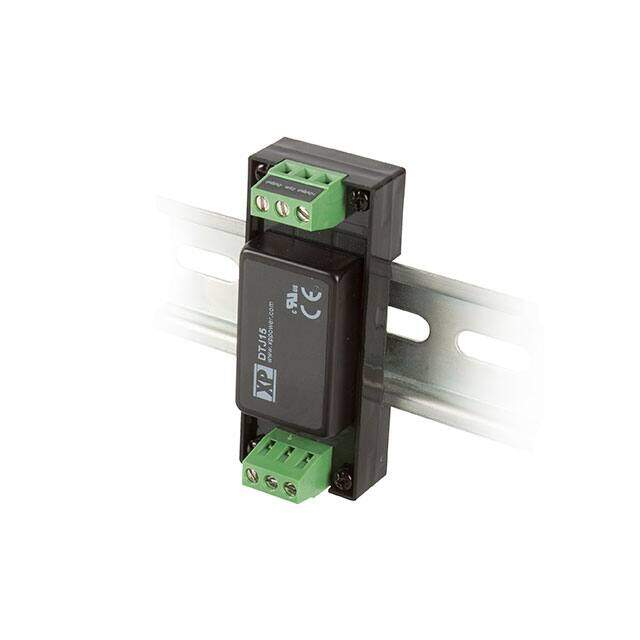

DTJ1548S12-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC-DC, DIN RAIL, 4:1 INPUT
PDF
/
Buying Options
Total Price: USD $41.57
Unit Price: USD $41.5732
≥1 USD $41.5732
≥10 USD $39.22
≥100 USD $37
Inventory: 66
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type DIN Rail
Technical
Operating Temperature -40°C~100°C With Derating
Series DTJ15 (15W)
Size / Dimension 1.24Lx1.00W x 3.00 H 31.4mmx25.4mmx76.2mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 15W
Number of Outputs 1
Approval Agency CB, UL
Efficiency 86%
Voltage - Isolation 3kV
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Input (Min) 18V
Current - Output (Max) 1.25A
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
