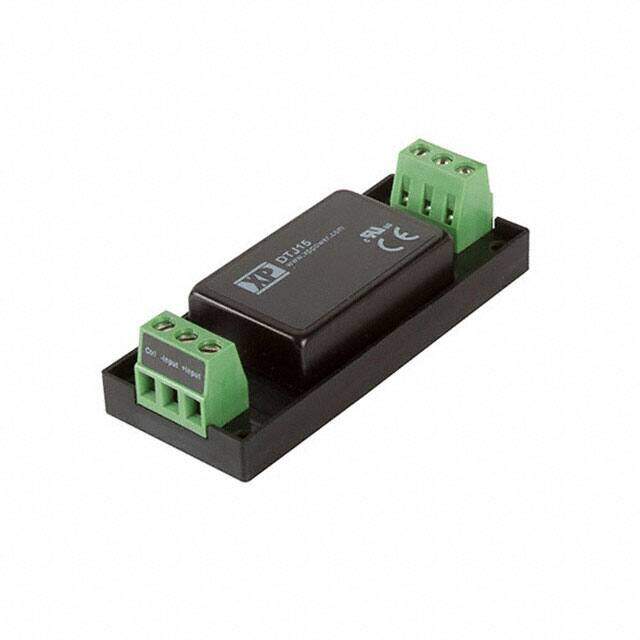

DTJ1548D15
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC-DC, CHASSIS MOUNT, 4:1 INPUT
PDF
/
Buying Options
Total Price: USD $39.33
Unit Price: USD $39.326
≥1 USD $39.326
≥10 USD $37.1
≥100 USD $35
Inventory: 37
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output 2 -15V
Current - Output (Max) 500mA 500mA
Voltage - Input (Min) 18V
Voltage - Output 1 15V
Voltage - Input (Max) 75V
Voltage - Isolation 3kV
Efficiency 87%
Approval Agency CB, UL
Number of Outputs 2
Power (Watts) 15W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 3.00Lx1.24W x 0.77 H 76.2mmx31.4mmx19.4mm
Series DTJ15 (15W)
Operating Temperature -40°C~100°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 14 Weeks
