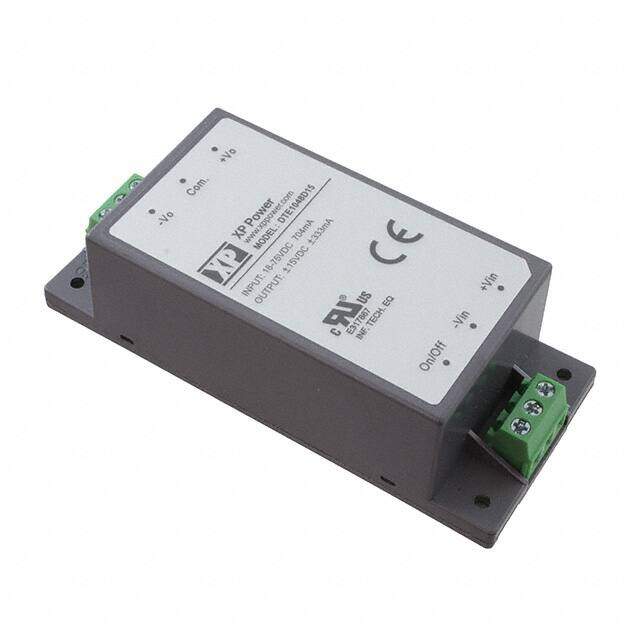

DTE1048D15
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC-DC CHASSIS MOUNT 10W
PDF
/
Buying Options
Total Price: USD $60
Unit Price: USD $60
≥1 USD $60
≥10 USD $56.60377
≥100 USD $53.39979
Inventory: 57
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~105°C With Derating
Series DTE10 (10W)
Size / Dimension 3.11Lx1.34W x 0.87 H 79.0mmx34.0mmx22.0mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 10W
Number of Outputs 2
Approval Agency CB, CE
Efficiency 86%
Voltage - Isolation 3kV
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Input (Min) 18V
Current - Output (Max) 333mA 333mA
Voltage - Output 2 -15V
Compliance
RoHS Status ROHS3 Compliant
