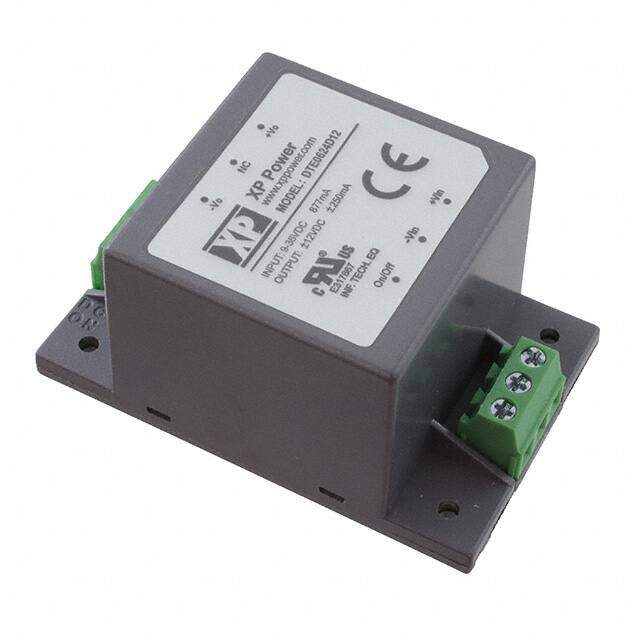

DTE0624D12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC-DC CHASSIS MOUNT 6W
PDF
/
Buying Options
Total Price: USD $48.31
Unit Price: USD $48.3148
≥1 USD $48.3148
≥10 USD $45.58
≥100 USD $43
Inventory: 29
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output 2 -12V
Current - Output (Max) 250mA 250mA
Voltage - Input (Min) 9V
Voltage - Output 1 12V
Voltage - Input (Max) 36V
Voltage - Isolation 3kV
Efficiency 84%
Approval Agency CB, CE
Number of Outputs 2
Power (Watts) 6W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 2.09Lx1.34W x 1.04 H 53.0mmx34.0mmx26.5mm
Series DTE06 (6W)
Operating Temperature -40°C~105°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 17 Weeks
