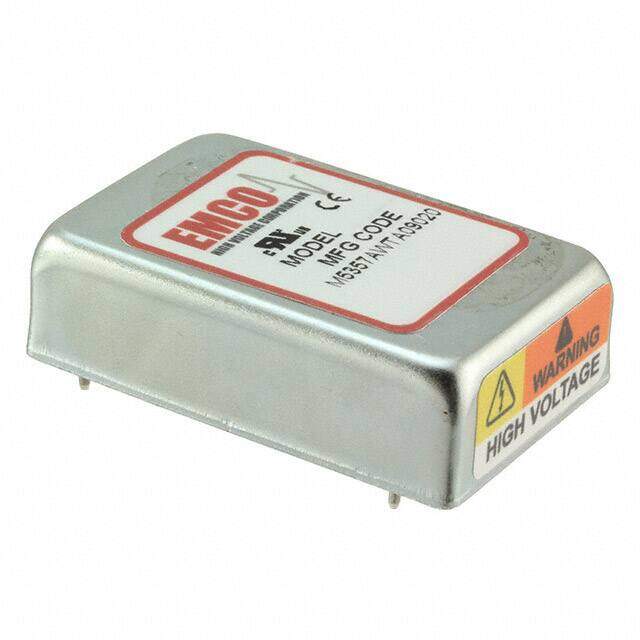

CA20P
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 2000V 1W
PDF
/
Buying Options
Total Price: USD $370.79
Unit Price: USD $370.788
≥1 USD $370.788
≥10 USD $349.8
≥100 USD $330
Inventory: 4368
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 12.7mm
Technical
Min Input Voltage (DC) 11.5V
Max Input Voltage (DC) 15.5V
Max Output Power 1W
Min Output Voltage 0V
Max Output Voltage 2kV
Output Power 1W
Current - Output (Max) 500μA
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Output 1 2000V
Max Output Current 500μA
Output Voltage 0V
Number of Outputs 1
JESD-30 Code R-XXMA-P9
Depth 44.45mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type High Voltage - Non-Isolated Module
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.75Lx1.10W x 0.50 H 44.5mmx27.9mmx12.7mm
Series XP EMCO - CA (1W)
Published 2016
Packaging Box
Operating Temperature -10°C~50°C
Physical
Package / Case 8-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 24 Weeks
