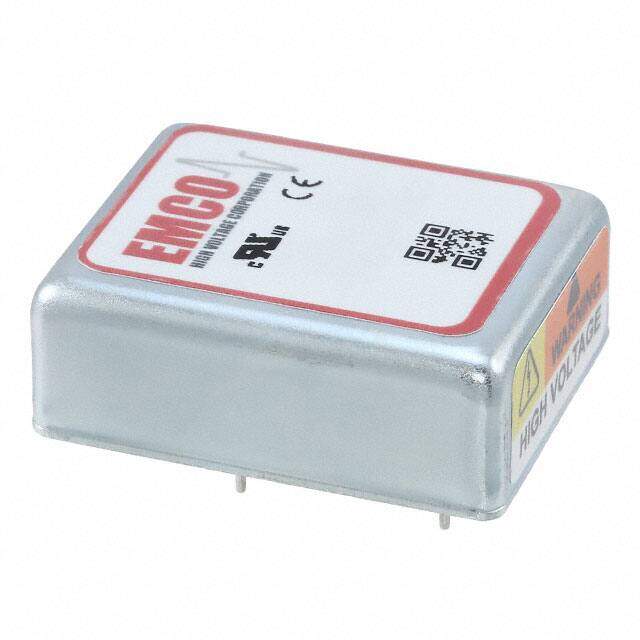

C15N
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER -1500V 1W
PDF
/
Inventory: 8392
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 5-DIP Module
Technical
Operating Temperature -10°C~60°C
Packaging Box
Series XP EMCO - C (1W)
Size / Dimension 1.40Lx1.11W x 0.50 H 35.6mmx28.2mmx12.7mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type High Voltage - Non-Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 1W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form PIN/PEG
Number of Functions 1
Depth 35.56mm
JESD-30 Code R-XXMA-P6
Number of Outputs 1
Output Voltage 0V
Max Output Current 670μA
Voltage - Output 1 -1500V
Trim/Adjustable Output YES
Current - Output (Max) 670μA
Output Power 1W
Max Output Voltage -1.5kV
Min Output Voltage 0V
Max Output Power 1W
Max Input Voltage (DC) 16V
Min Input Voltage (DC) 11.5V
Dimensions
Height 12.7mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
