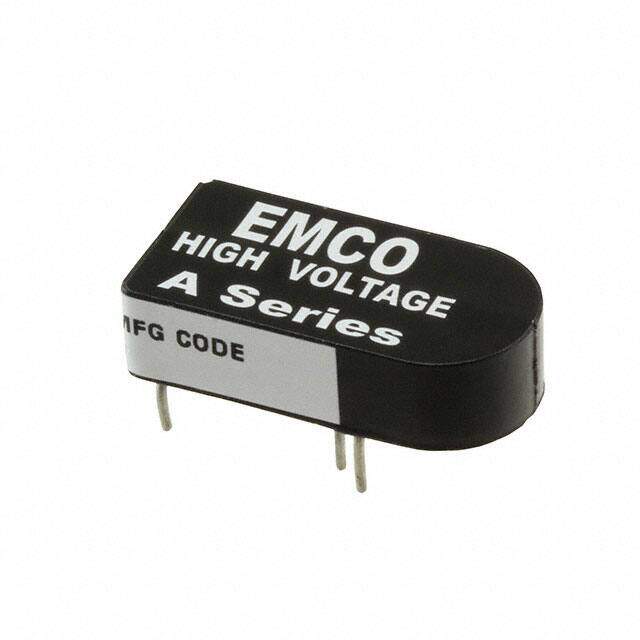

A03N-12
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Dc-high Voltage DC Isolated 1W -300V
PDF
/
Buying Options
Total Price: USD $121.35
Unit Price: USD $121.3488
≥1 USD $121.3488
≥10 USD $114.48
≥100 USD $108
Inventory: 6381
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 6.35mm
Technical
Min Input Voltage (DC) 700mV
Max Input Voltage (DC) 12V
Max Output Power 1W
Current - Output 1 3.33mA
Output Power 1W
Voltage - Input (Min) 0.7V
Voltage - Output 1 -300V
Max Output Current 3.33mA
Voltage - Input (Max) 12V
Voltage - Isolation 500V
Number of Outputs 1
Depth 23.37mm
Max Power Dissipation 1W
Applications ITE (Commercial)
Type High Voltage - Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Proportional Output
Size / Dimension 0.92Lx0.45W x 0.25 H 23.4mmx11.4mmx6.4mm
Series XP EMCO - A (1W)
Published 2015
Packaging Box
Operating Temperature -25°C~75°C
Physical
Package / Case 5-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
