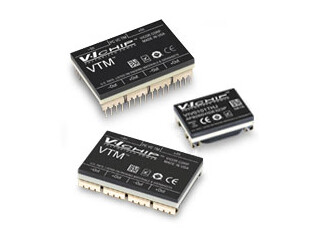

VTM48EF080T030A00
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERT DC/DC VTM 8V 30A SMD
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Published 2014
Series VI Chip? VTM?
Size / Dimension 1.28Lx0.87W x 0.26 H 32.5mmx22.0mmx6.7mm
Feature Remote On/Off, OCP, OTP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Type Voltage Transformation Module
Applications ITE (Commercial)
Power (Watts) 240W
Max Power Dissipation 240W
Technology HYBRID
Terminal Position QUAD
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XQMA-X
Number of Outputs 1
Approval Agency CE, TUV
Efficiency 95%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 55V
Max Output Current 30A
Voltage - Output 1 8V
Voltage - Input (Min) 26V
Supply Voltage-Max (Vsup) 55V
Supply Voltage-Min (Vsup) 26V
Total Power Output-Max 267W
Dimensions
Height 6.858mm
Length 32.5mm
Width 22mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
