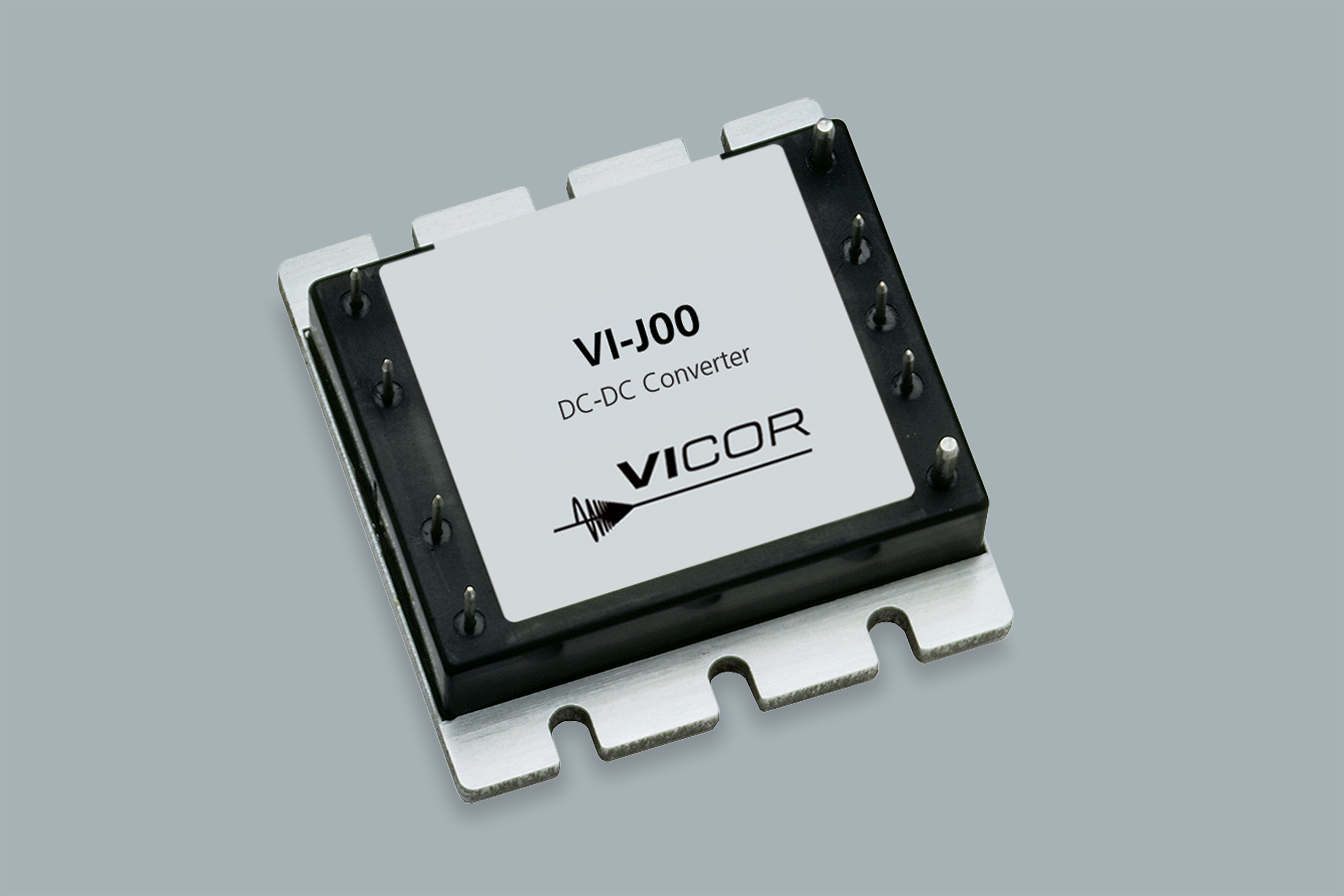

VE-JWP-CW image
Favorite
VE-JWP-CW image
Favorite
RoHS
RoHS RoHS compliant
Package Half Brick
Category Power Supplies - Board Mount / DC DC Converters
Description CONVERTER MOD DC/DC 13.8V 100W
PDF
/
Inventory: 7710
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 57.9mm
Height 12.7mm

Technical

Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 13.8V
Max Output Current 7.25A
Output Voltage 13.8V
Voltage - Input (Max) 36V
Voltage - Isolation 3kV
Efficiency 90%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-P9
Pin Count 9
Base Part Number VE-JWP
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 100W
Power (Watts) 100W
Applications ITE (Commercial)
Terminal Finish Matte Tin (Sn)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature OCP, SCP
JESD-609 Code e3
Size / Dimension 2.28Lx2.40W x 0.50 H 57.9mmx70.0mmx12.7mm
Series VE-J00? (100W)
Published 2013
Packaging Bulk
Operating Temperature -25°C~100°C

Physical

Package / Case Half Brick
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 16 Weeks
