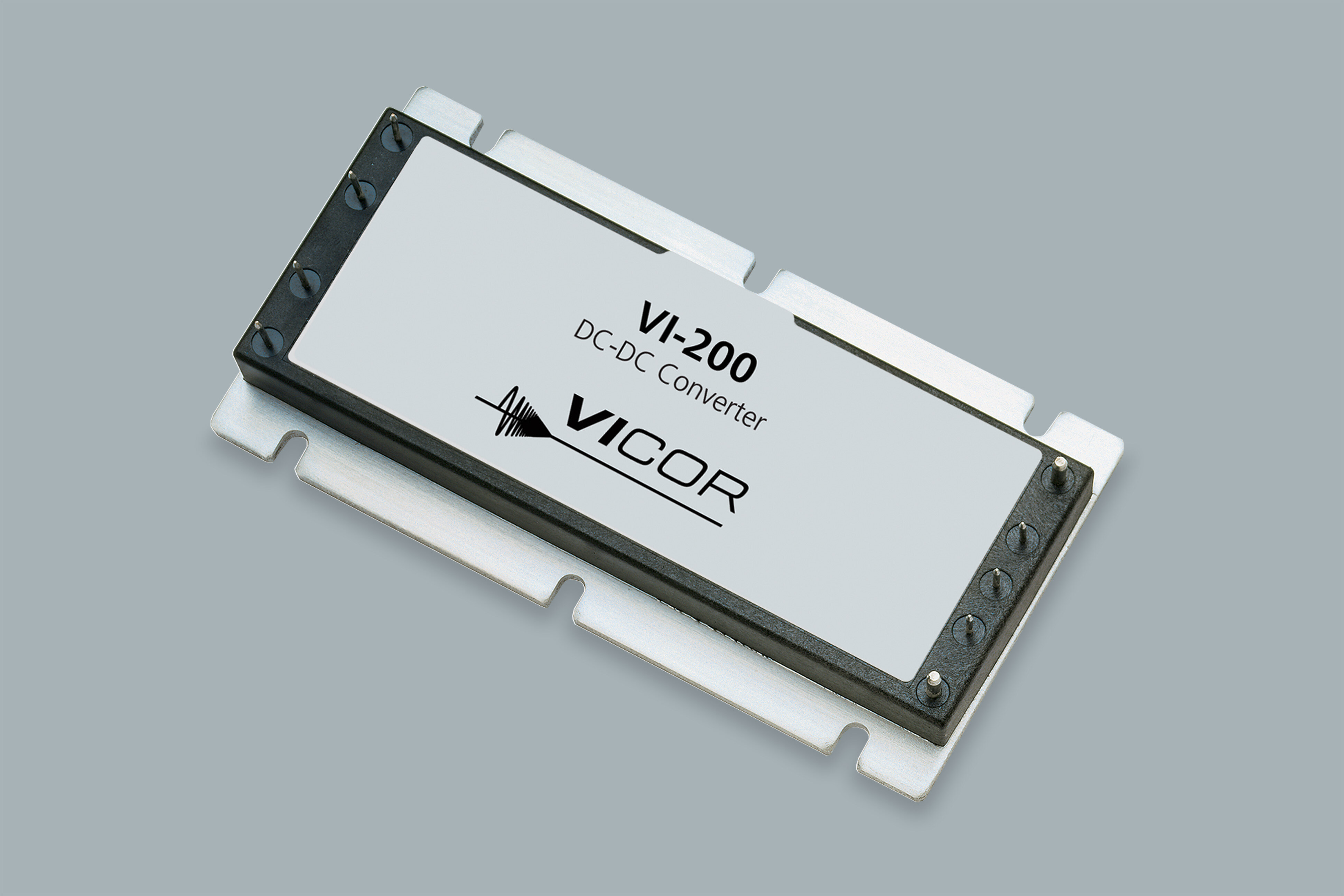

VE-B6P-EU
RoHS
RoHS compliant
RoHS compliantPackage Full Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER MOD DC/DC 13.8V 200W
PDF
/
Inventory: 6631
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 12.7mm
Technical
Trim/Adjustable Output YES
Input Voltage-Nom 300V
Voltage - Input (Min) 200V
Voltage - Output 1 13.8V
Max Output Current 14.49A
Output Voltage 13.8V
Voltage - Input (Max) 400V
Voltage - Isolation 3kV
Efficiency 88%
Number of Outputs 1
JESD-30 Code R-XDMA-P9
Pin Count 9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 200W
Power (Watts) 200W
Applications ITE (Commercial)
Terminal Finish Matte Tin (Sn)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature OCP, OTP, OVP, SCP
JESD-609 Code e3
Size / Dimension 4.60Lx2.40W x 0.50 H 116.8mmx61.0mmx12.7mm
Series VE-200? (200W)
Published 2013
Packaging Bulk
Operating Temperature -10°C~85°C
Physical
Package / Case Full Brick
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
