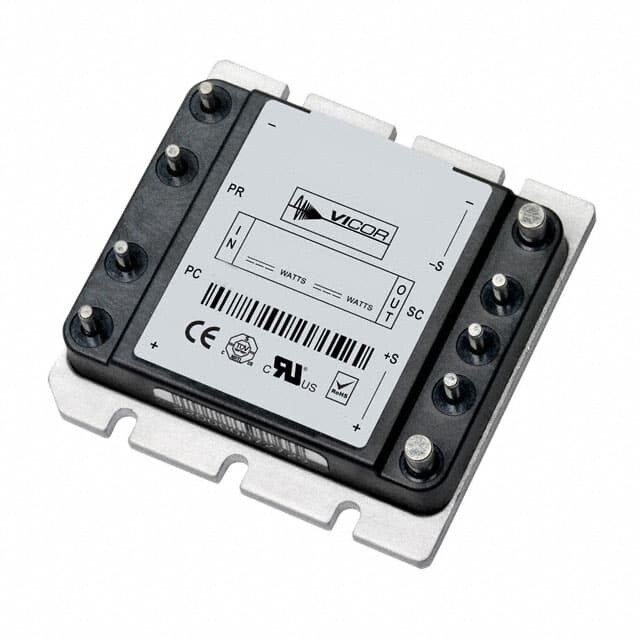

V48B2M100BF
RoHS
RoHS compliant
RoHS compliantPackage 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER MOD DC/DC 2V 100W
PDF
/
Inventory: 9722
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 9-DIP Module
Technical
Operating Temperature -55°C~100°C
Packaging Bulk
Series MINI (100W)
Size / Dimension 2.28Lx2.20W x 0.50 H 57.9mmx55.9mmx12.7mm
JESD-609 Code e4
Feature OVP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Terminal Finish Gold (Au)
Applications ITE (Commercial)
Power (Watts) 100W
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 100W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number V48B2M100
Pin Count 9
JESD-30 Code R-XDMA-P9
Number of Outputs 1
Qualification Status Not Qualified
Approval Agency UL, CSA, TUV
Efficiency 75.5%
Voltage - Isolation 3kV
Voltage - Input (Max) 75V
Output Voltage 2V
Max Output Current 50A
Voltage - Output 1 2V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Dimensions
Height 13.716mm
Width 55.88mm
Compliance
RoHS Status ROHS3 Compliant
