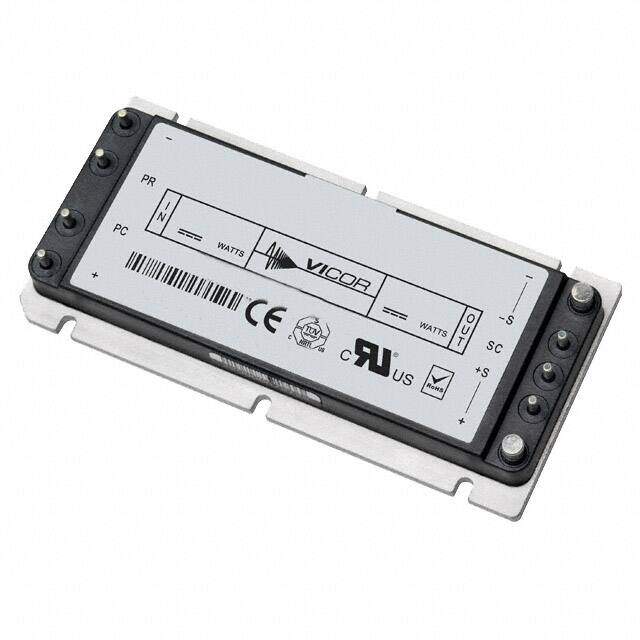

V375A5E300BF
RoHS
RoHS compliant
RoHS compliantPackage Full Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER MOD DC/DC 5V 300W
PDF
/
Inventory: 5380
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 55.88mm
Height 13.716mm
Technical
Trim/Adjustable Output YES
Input Voltage-Nom 375V
Voltage - Input (Min) 250V
Voltage - Output 1 5V
Max Output Current 60A
Output Voltage 5V
Voltage - Input (Max) 425V
Voltage - Isolation 3kV
Efficiency 83.3%
Approval Agency CSA, UL
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDFM-P9
Pin Count 9
Base Part Number V375A5E300
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 300W
Subcategory Power Supply Modules
Power (Watts) 300W
Applications ITE (Commercial)
Terminal Finish Gold (Au)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature OVP, UVLO
JESD-609 Code e4
Size / Dimension 4.60Lx2.20W x 0.54 H 116.8mmx55.9mmx13.7mm
Series Maxi (300W)
Packaging Bulk
Operating Temperature -10°C~100°C
Physical
Package / Case Full Brick
Mounting Type Through Hole
Mount Through Hole
