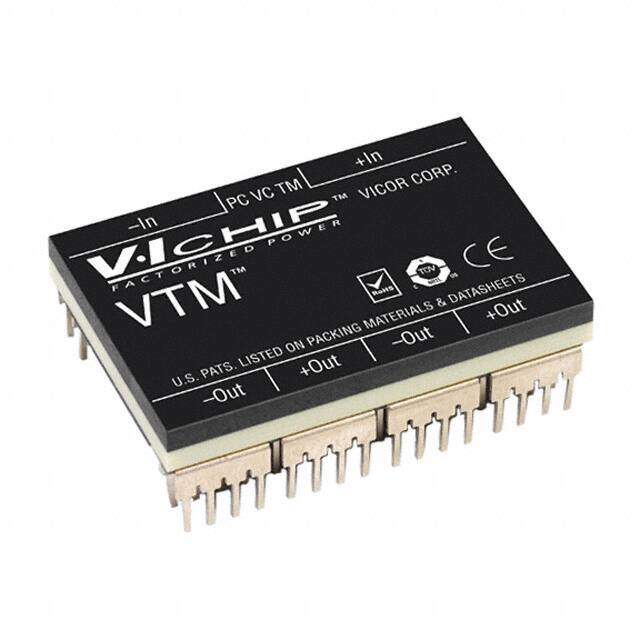

V048T080M030
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - Board Mount / DC DC Converters
Description
VTM CURRENT MULTIPLIER 8V 30A
PDF
/
Inventory: 2650
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 6.604mm
Technical
Supply Voltage-Min (Vsup) 26V
Supply Voltage-Max (Vsup) 55V
Voltage - Input (Min) 26V
Voltage - Output 1 8V
Max Output Current 30A
Voltage - Input (Max) 55V
Voltage - Isolation 2.25kV
Efficiency 95.8%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XXMA-T60
Pin Count 60
Base Part Number V048T080
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 48V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position UNSPECIFIED
Max Power Dissipation 240W
Power (Watts) 240W
Applications ITE (Commercial)
Terminal Finish NICKEL PALLADIUM GOLD
Type Voltage Transformation Module
Number of Terminations 60
Moisture Sensitivity Level (MSL) 5 (48 Hours)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off
JESD-609 Code e4
Size / Dimension 1.28Lx0.87W x 0.26 H 32.5mmx22.0mmx6.7mm
Series VI Chip? VTM?
Published 2013
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Package / Case Module
Mounting Type Through Hole
Mount Through Hole
