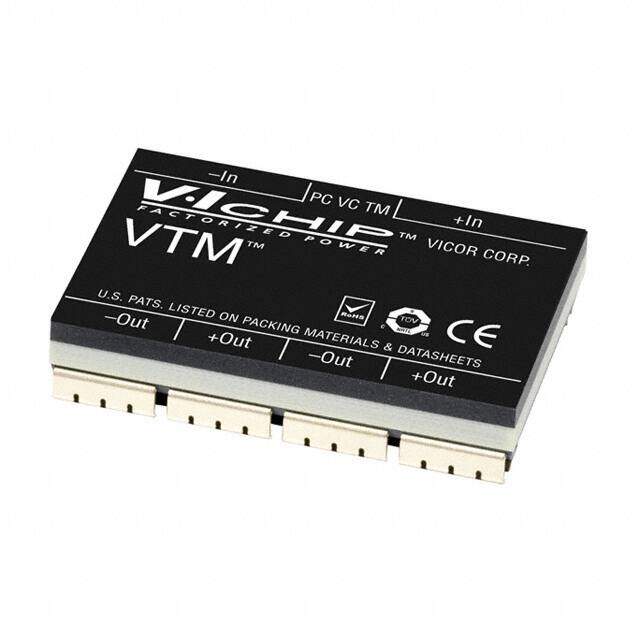

V048F096T025
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERT DC/DC VTM 9.6V 25A SMD
PDF
/
Buying Options
Total Price: USD $123.91
Unit Price: USD $123.91325
≥1 USD $123.91325
≥10 USD $119.78265
≥100 USD $107.3918
Inventory: 38
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 6.604mm
Technical
Output Power 268W
Output Current 25A
Trim/Adjustable Output YES
Voltage - Input (Min) 32V
Max Output Current 25A
Output Voltage 9.6V
Voltage - Input (Max) 55V
Voltage - Isolation 2.25kV
Efficiency 96.2%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-X9
Pin Count 9
Base Part Number V048F096
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) 225
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 240W
Power (Watts) 240W
Applications ITE (Commercial)
Terminal Finish NICKEL PALLADIUM GOLD
Type Voltage Transformation Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) 5 (48 Hours)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off
JESD-609 Code e4
Size / Dimension 1.28Lx0.87W x 0.26 H 32.5mmx22.0mmx6.7mm
Series VI Chip? VTM?
Published 2011
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
