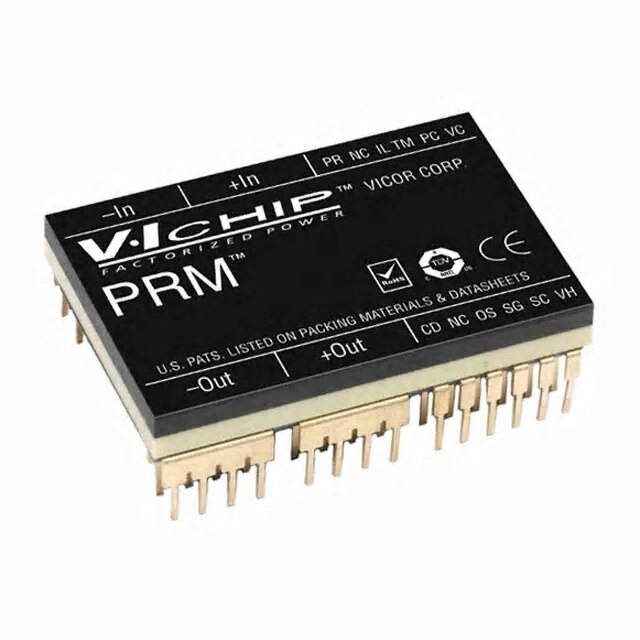

PRM48AT480M400A00
RoHS
RoHS compliant
RoHS compliantPackage 16-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 48V 400W
PDF
/
Inventory: 4010
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 22mm
Length 32.5mm
Height 6.858mm
Technical
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 48V
Max Output Current 8.33A
Output Voltage 48V
Voltage - Input (Max) 75V
Efficiency 97.5%
Number of Outputs 1
JESD-30 Code R-XDMA-T32
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 400W
Power (Watts) 400W
Applications ITE (Commercial)
Terminal Finish NICKEL (80) PALLADIUM (6) GOLD (2)
Type Pre-Regulator Module
ECCN Code EAR99
Number of Terminations 32
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, UVLO
JESD-609 Code e4
Size / Dimension 1.28Lx0.87W x 0.26 H 32.5mmx22.0mmx6.7mm
Series VI Chip? PRM? (400W)
Published 2015
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Package / Case 16-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
Alternative Model
