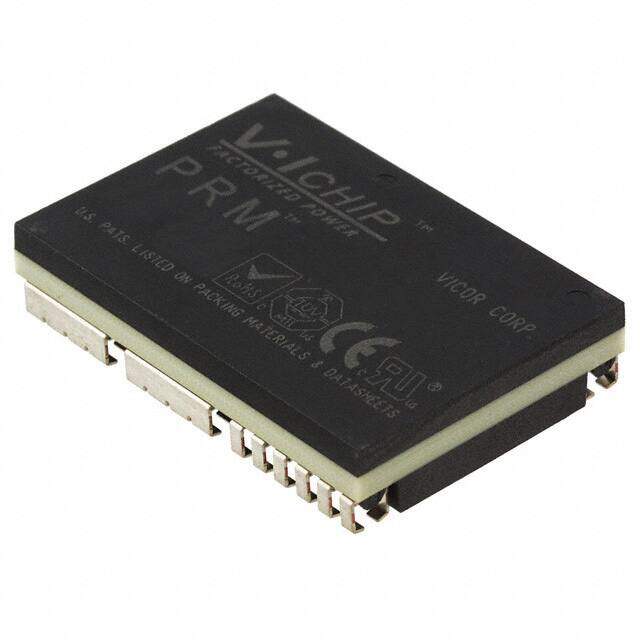

PRM48AF480M400A00
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 48V 400W
PDF
/
Inventory: 9442
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 22mm
Length 32.5mm
Height 6.858mm
Technical
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 48V
Max Output Current 8.33A
Output Voltage 48V
Voltage - Input (Max) 75V
Efficiency 97.5%
Number of Outputs 1
JESD-30 Code R-XDMA-X32
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 400W
Power (Watts) 400W
Applications ITE (Commercial)
Terminal Finish NICKEL (80) PALLADIUM (6) GOLD (2)
Type Pre-Regulator Module
ECCN Code EAR99
Number of Terminations 32
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, UVLO
JESD-609 Code e4
Size / Dimension 1.28Lx0.87W x 0.26 H 32.5mmx22.0mmx6.7mm
Series VI Chip? PRM? (400W)
Published 2015
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
