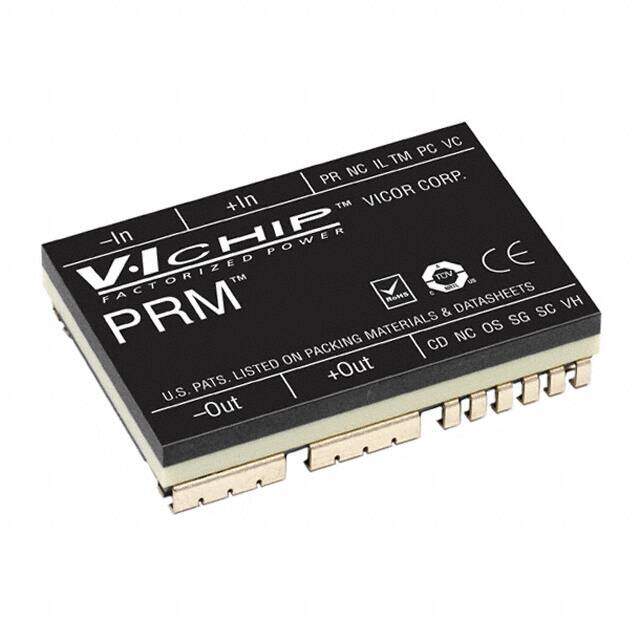

P024F048T12AL
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR PRM 48V OUT 120W SMD
PDF
/
Buying Options
Total Price: USD $127.61
Unit Price: USD $127.61255
≥1 USD $127.61255
≥10 USD $123.35845
≥100 USD $110.5971
Inventory: 1109
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 6.604mm
Technical
Output Power 120W
Output Current 12A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 48V
Max Output Current 2.5A
Output Voltage 48V
Voltage - Input (Max) 36V
Efficiency 95%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 16
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) 225
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 120W
HTS Code 8504.40.60.07
Applications ITE (Commercial)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Pre-Regulator Module
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, UVLO
JESD-609 Code e4
Size / Dimension 1.28Lx0.87W x 0.26 H 32.5mmx22.0mmx6.7mm
Series VI Chip? PRM? (120W)
Published 2012
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
