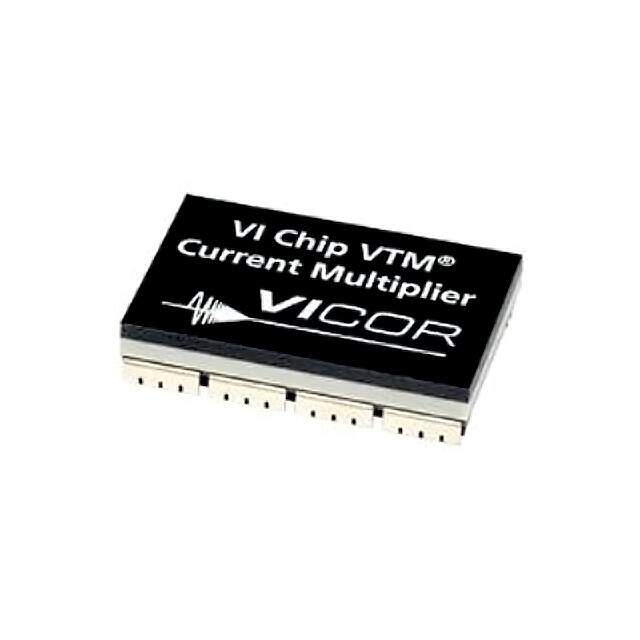

MVTM36BF072M017A00
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 7.2V 150W
PDF
/
Inventory: 2196
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2015
Series MVTM36 (150W)
Size / Dimension 1.28Lx0.87W x 0.26 H 32.5mmx22.0mmx6.7mm
Feature OCP, OTP, OVP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 18
ECCN Code EAR99
Type Voltage Transformation Module
Applications ITE (Commercial)
Power (Watts) 150W
Max Power Dissipation 122W
Technology HYBRID
Terminal Position DUAL
Terminal Form J BEND
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 18
Number of Outputs 1
Efficiency 95.9%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 50V
Output Voltage 7.2V
Max Output Current 17A
Voltage - Output 1 7.2V
Voltage - Input (Min) 26V
Input Voltage-Nom 36V
Trim/Adjustable Output NO
Dimensions
Height 6.604mm
Length 32.5mm
Width 22mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
