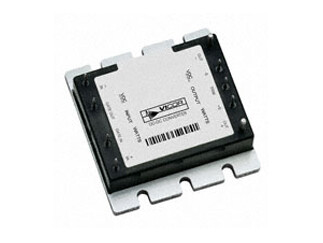

MI-J6L-IZ
RoHS
/
Package 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERT DC/DC 270VIN 28VOUT 25W
PDF
/
Inventory: 6384
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 9-DIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2008
Series MI-J00? (25W)
Size / Dimension 2.40Lx2.28W x 0.50 H 61.0mmx57.9mmx12.7mm
JESD-609 Code e0
Feature Remote On/Off, OCP, OTP, OVP
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 9
Type Isolated Module
Terminal Finish TIN LEAD OVER COPPER
Applications ITE (Commercial)
Power (Watts) 25W
Max Power Dissipation 25W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 9
JESD-30 Code R-PDFM-P9
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 90%
Voltage - Isolation 3kV
Voltage - Input (Max) 400V
Output Voltage 28V
Max Output Current 893mA
Voltage - Output 1 28V
Voltage - Input (Min) 125V
Input Voltage-Nom 270V
Trim/Adjustable Output YES
Protections CURRENT; INPUT LOW VOLTAGE; INPUT OVER VOLTAGE
Dimensions
Height 12.7mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
