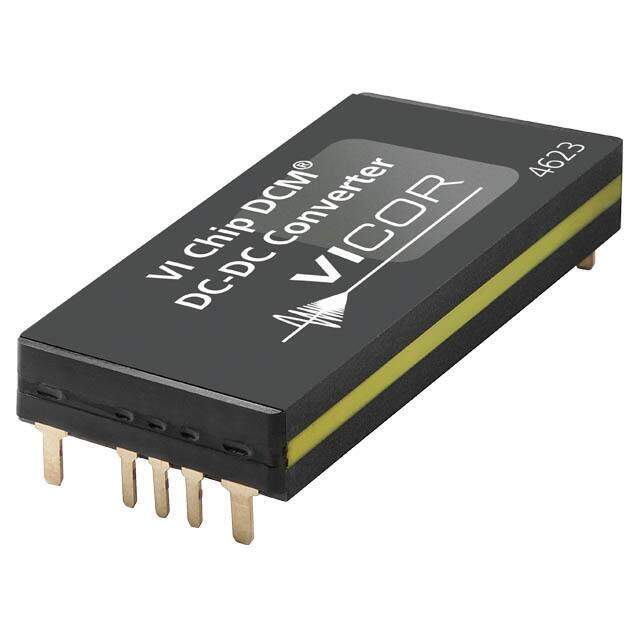

DCM4623TD2K53E0M00
RoHS
RoHS compliant
RoHS compliantPackage 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 48V 500W
PDF
/
Buying Options
Total Price: USD $684.12
Unit Price: USD $684.1208
≥1 USD $684.1208
≥10 USD $543.42024
Inventory: 94
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Through Hole
Package / Case 9-DIP Module
Surface Mount NO
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Published 2017
Series VI Chip? DCM? (500W)
Size / Dimension 1.89Lx0.90W x 0.29 H 47.9mmx22.8mmx7.3mm
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 500W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
JESD-30 Code R-XDMA-P9
Number of Outputs 1
Efficiency 93%
Voltage - Isolation 4.242kV
Voltage - Input (Max) 420V
Output Voltage 48V
Voltage - Output 1 48V
Voltage - Input (Min) 160V
Input Voltage-Nom 270V
Trim/Adjustable Output YES
Current - Output (Max) 10.42A
Total Power Output-Max 500W
Dimensions
Width 22.8mm
Compliance
RoHS Status ROHS3 Compliant
