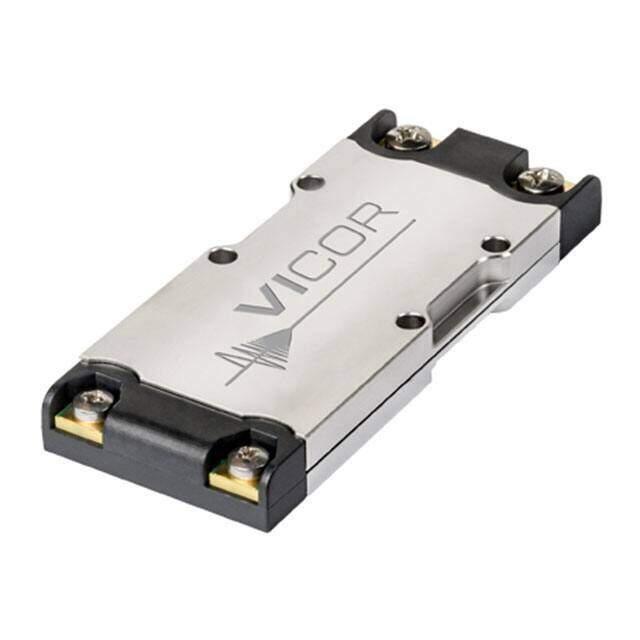

DCM3414V50M17C2C01
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 15V 320W
PDF
/
Buying Options
Total Price: USD $653.22
Unit Price: USD $653.224
≥1 USD $653.224
≥10 USD $518.87528
Inventory: 79
Minimum: 1
-
+
Technical Details
Technical
Voltage - Input (Max) 50V
Voltage - Output 1 15V
Voltage - Input (Min) 16V
Current - Output (Max) 21.33A
Efficiency 92.2%
Approval Agency CE, cTUVus
Number of Outputs 1
Max Power Dissipation 320W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 3.38Lx1.40W x 0.37 H 85.9mmx35.5mmx9.3mm
Series VI Chip? DCM? (320W)
Published 2017
Packaging Box
Operating Temperature -20°C~100°C
Dimensions
Height 9.398mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 16 Weeks
