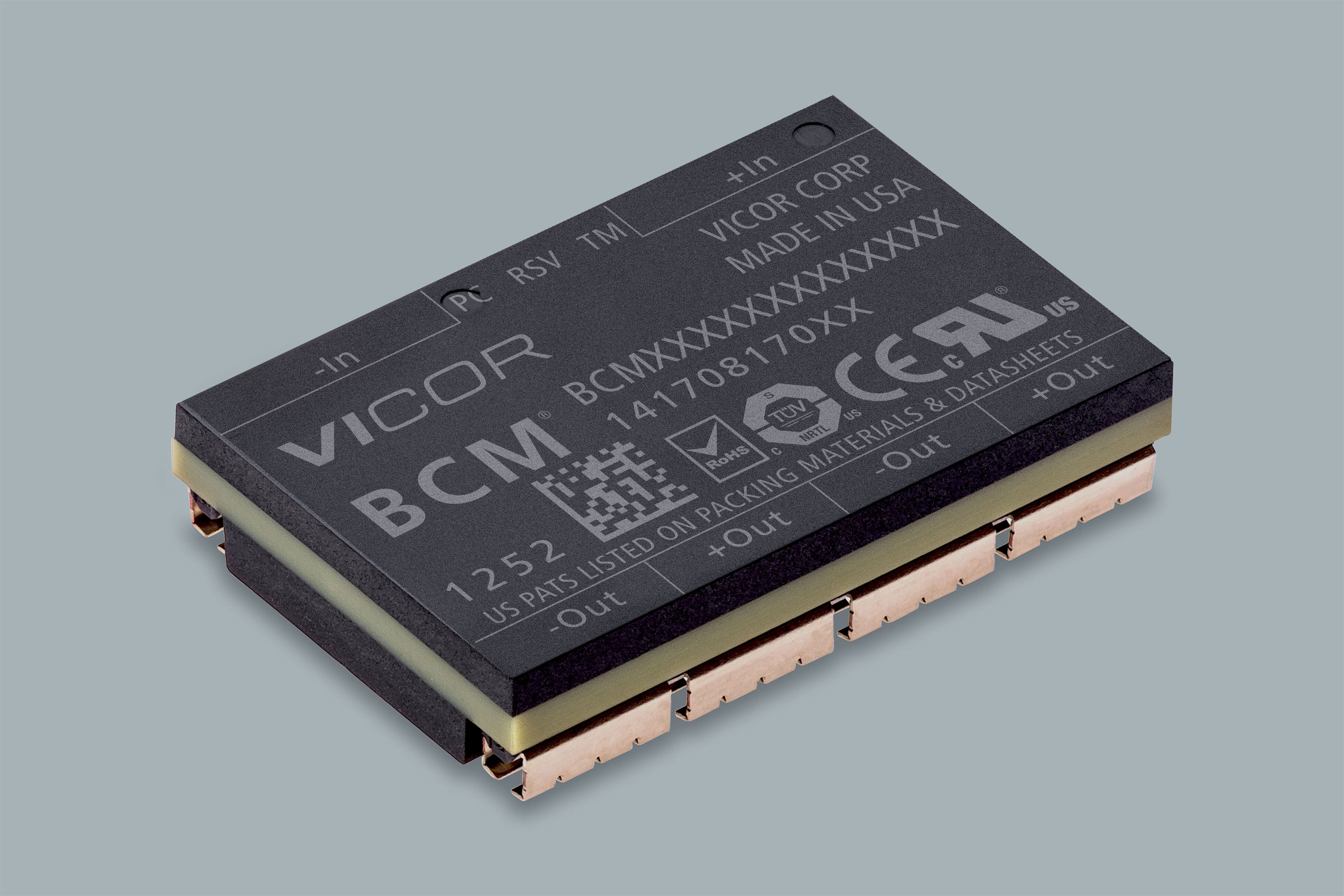

BCM48BF080M240A00
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - Board Mount / DC DC Converters
Description
BCM BUS CONVERTER 8V 240W
PDF
/
Buying Options
Total Price: USD $214.53
Unit Price: USD $214.52908
≥1 USD $214.52908
≥10 USD $202.385923
≥100 USD $190.930123
≥500 USD $180.122756
≥1000 USD $169.92713
Inventory: 3007
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Published 2014
Series VI Chip? BCM? (240W)
Size / Dimension 1.28Lx0.87W x 0.26 H 32.5mmx22.0mmx6.7mm
Feature OCP, OTP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 9
ECCN Code EAR99
Type Bus Converter Module
Applications ITE (Commercial)
Power (Watts) 240W
Additional Feature SEATED HT-CALCULATED
Max Power Dissipation 240W
Technology HYBRID
Terminal Position DUAL
Terminal Form J BEND
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-J9
Number of Outputs 1
Approval Agency CE,TUV
Efficiency 95%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 55V
Output Voltage 8V
Max Output Current 36A
Voltage - Output 1 8V
Voltage - Input (Min) 38V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Dimensions
Height 6.858mm
Length 32.5mm
Width 22mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
