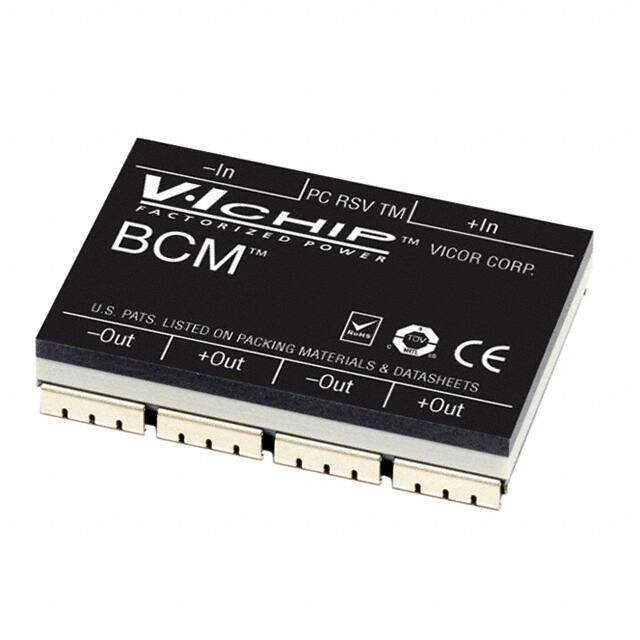

B048F080M24
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - Board Mount / DC DC Converters
Description
BCM BUS CONVERTER 8V 240W
PDF
/
Inventory: 3690
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 60
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Published 2012
Series VI Chip? BCM? (240W)
Size / Dimension 1.28Lx0.87W x 0.26 H 32.5mmx22.0mmx6.7mm
JESD-609 Code e4
Feature Remote On/Off, UVLO
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 5 (48 Hours)
Number of Terminations 62
Type Bus Converter Module
Terminal Finish NICKEL PALLADIUM GOLD
Applications ITE (Commercial)
Power (Watts) 240W
Max Power Dissipation 240W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form J BEND
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Supply Voltage 5V
Pin Count 62
JESD-30 Code R-XXMA-J62
Number of Outputs 1
Efficiency 95.8%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 55V
Max Output Current 30A
Voltage - Output 1 8V
Voltage - Input (Min) 38V
Supply Voltage-Max (Vsup) 5.2V
Supply Voltage-Min (Vsup) 4.8V
Dimensions
Height 6.604mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
