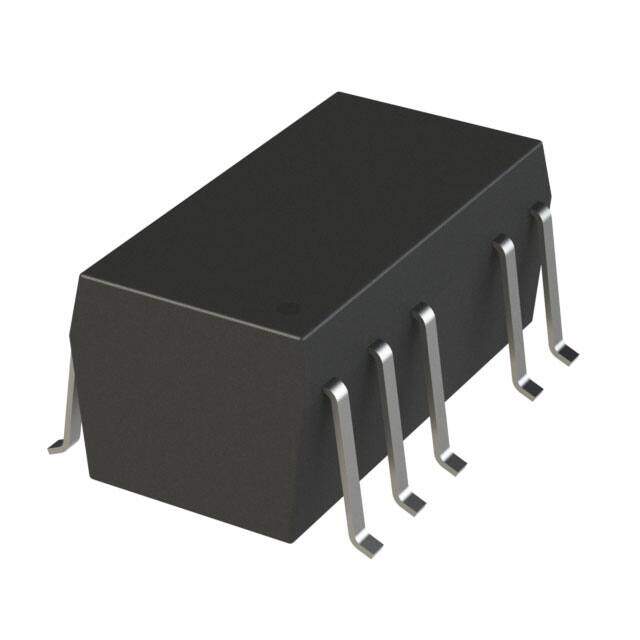

TSV 0515D
RoHS
RoHS compliant
RoHS compliantPackage 22-SMD Module, 10 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 900MW
PDF
/
Buying Options
Total Price: USD $13.55
Unit Price: USD $13.552
≥1 USD $13.552
≥10 USD $12.85416
≥100 USD $12.656512
≥500 USD $12.26104
≥1000 USD $11.074448
≥3000 USD $10.876694
Inventory: 56
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 22-SMD Module, 10 Leads
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Series TSV (1W)
Size / Dimension 0.60Lx0.31W x 0.27 H 15.2mmx8.0mmx7.0mm
Feature SCP
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 10
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 900mW
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) 10
JESD-30 Code R-XDMA-G10
Number of Outputs 2
Efficiency 79%
Voltage - Isolation 3kV
Voltage - Input (Max) 5.5V
Output Voltage 15V
Voltage - Output 1 15V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 30mA 30mA
Voltage - Output 2 -15V
Total Power Output-Max 1W
Dimensions
Height Seated (Max) 7.45mm
Width 8mm
Compliance
RoHS Status ROHS3 Compliant
