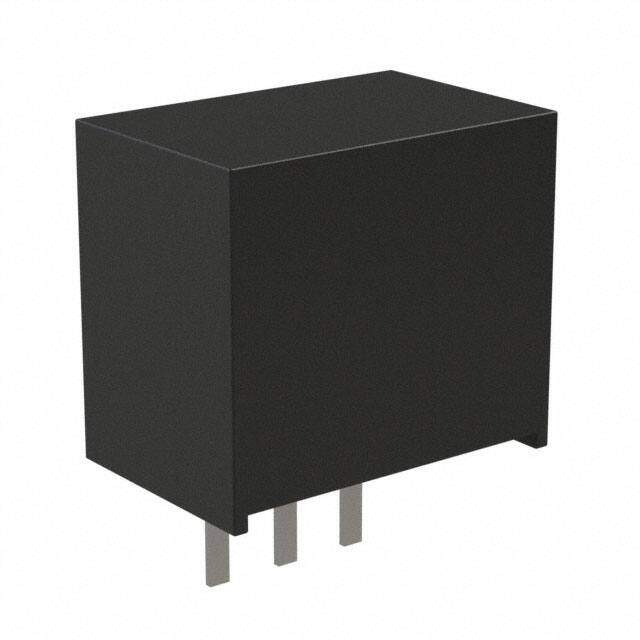

TSRN 1-24120
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 12W
PDF
/
Buying Options
Total Price: USD $10.47
Unit Price: USD $10.472
≥1 USD $10.472
Inventory: 180
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.5mm
Technical
Current - Output (Max) 1A
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 13.5V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 42V
Efficiency 95%
Number of Outputs 1
JESD-30 Code R-PSMA-T3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 12W
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature OTP, SCP
Size / Dimension 0.46Lx0.30W x 0.40 H 11.7mmx7.5mmx10.2mm
Series TSRN 1
Published 2011
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 3-SIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
