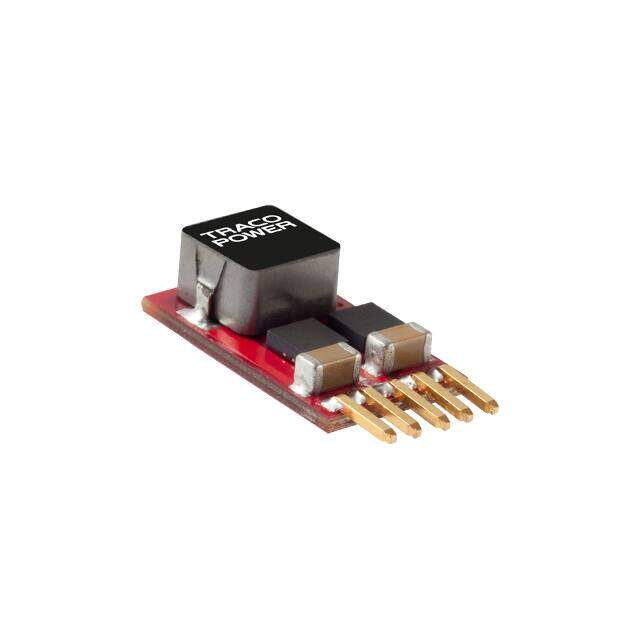

TSR 3-2450
RoHS
RoHS compliant
RoHS compliantPackage 5-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3-6V 18W
PDF
/
Buying Options
Total Price: USD $28.51
Unit Price: USD $28.512
≥1 USD $28.512
≥10 USD $21.428
Inventory: 628
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Technical
Current - Output (Max) 3A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 10V
Voltage - Output 1 3V~6V
Voltage - Input (Max) 30V
Efficiency 91%
Number of Outputs 1
JESD-30 Code R-XXMA-T5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Additional Feature SEATED HGT-NOM
Power (Watts) 18W
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 0.65Lx0.41W x 0.24 H 16.5mmx10.4mmx6.2mm
Series TSR-3
Published 2010
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 5-SIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
