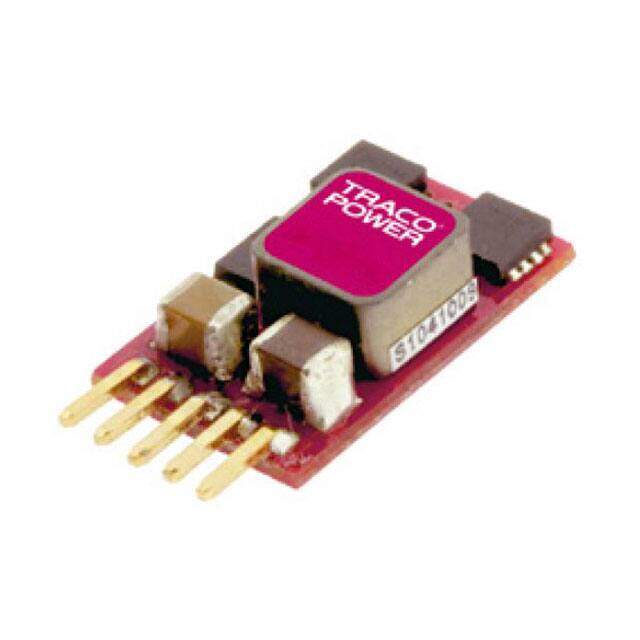

TSR 3-1250
RoHS
RoHS compliant
RoHS compliantPackage 5-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.59-6V 18W
PDF
/
Buying Options
Total Price: USD $23.58
Unit Price: USD $23.584
≥1 USD $23.584
≥10 USD $17.76544
Inventory: 230
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 5-SIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Published 2010
Series TSR-3
Size / Dimension 0.61Lx0.37W x 0.24 H 15.5mmx9.4mmx6.2mm
Feature Remote On/Off, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
ECCN Code EAR99
Type Linear Regulator Replacement
Applications ITE (Commercial)
Power (Watts) 18W
Additional Feature SEATED HGT-NOM
Technology HYBRID
Terminal Position UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-T5
Number of Outputs 1
Efficiency 93%
Voltage - Input (Max) 14V
Voltage - Output 1 0.59V~6V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Current - Output (Max) 3A
Dimensions
Length 9.4mm
Width 6mm
Compliance
RoHS Status ROHS3 Compliant
