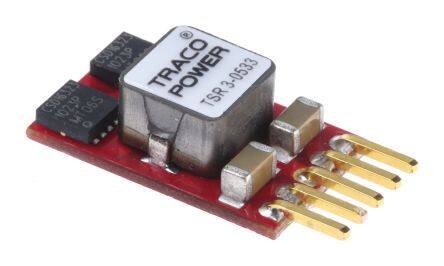

TSR 3-0533
RoHS
RoHS compliant
RoHS compliantPackage 5-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.6-3.3V 10W
PDF
/
Buying Options
Total Price: USD $23.58
Unit Price: USD $23.584
≥1 USD $23.584
≥10 USD $22.96624
≥100 USD $22.607904
≥500 USD $21.531136
≥1000 USD $19.736904
≥3000 USD $19.378058
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 5-SIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Published 2010
Series TSR-3
Size / Dimension 0.37Lx0.24W x 0.61 H 9.4mmx6.0mmx15.5mm
Feature Remote On/Off, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
ECCN Code EAR99
Type Linear Regulator Replacement
Applications ITE (Commercial)
Power (Watts) 10W
Additional Feature SEATED HGT-NOM
Technology HYBRID
Terminal Position UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-T5
Number of Outputs 1
Efficiency 95%
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.6V~3.3V
Voltage - Input (Min) 2.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Current - Output (Max) 3A
Dimensions
Length 9.4mm
Width 6mm
Compliance
RoHS Status ROHS3 Compliant
