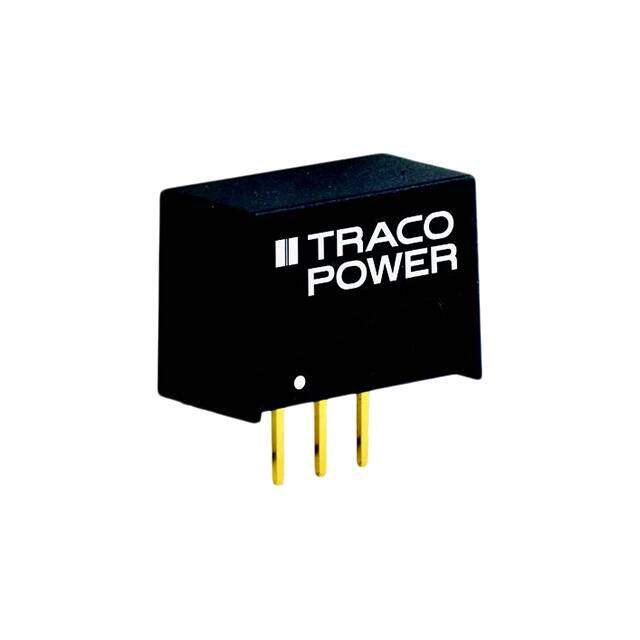

TSR 2-2450
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 10W
PDF
/
Buying Options
Total Price: USD $10.34
Unit Price: USD $10.34
≥1 USD $10.34
≥10 USD $10.18248
≥100 USD $10.025664
≥500 USD $9.712384
≥1000 USD $8.772456
≥3000 USD $8.615798
Inventory: 5434
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.5mm
Technical
Current - Output (Max) 2A
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 6.5V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 36V
Efficiency 94%
Number of Outputs 1
JESD-30 Code R-PSMA-T3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 10W
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature OCP, SCP
Size / Dimension 0.55Lx0.30W x 0.40 H 14.0mmx7.5mmx10.1mm
Series TSR 2
Published 2016
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 3-SIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
