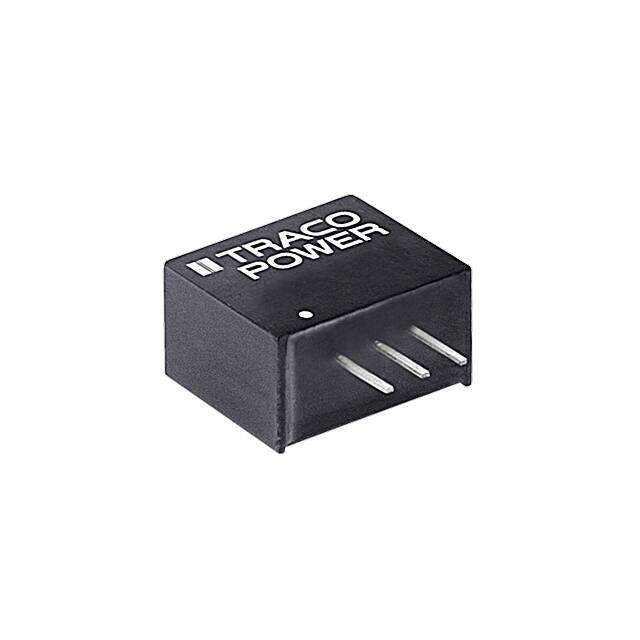

TSR 1-2425
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 2.5V 2.5W
PDF
/
Buying Options
Total Price: USD $8.07
Unit Price: USD $8.0696
≥1 USD $8.0696
≥10 USD $7.94376
≥100 USD $7.82144
≥500 USD $7.576976
≥1000 USD $6.84376
≥3000 USD $6.721546
Inventory: 47
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.55mm
Technical
Switching Frequency-Max 600kHz
Total Power Output-Max 2.5W
Protections OUTPUT OVER CURRENT; THERMAL
Current - Output (Max) 1A
Trim/Adjustable Output NO
Input Voltage-Nom 9V
Voltage - Input (Min) 4.6V
Voltage - Output 1 2.5V
Output Voltage 2.5V
Voltage - Input (Max) 36V
Efficiency 87%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PSIP-T3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 2.5W
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.46Lx0.30W x 0.40 H 11.7mmx7.5mmx10.1mm
Series TSR 1
Published 2009
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 3-SIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
