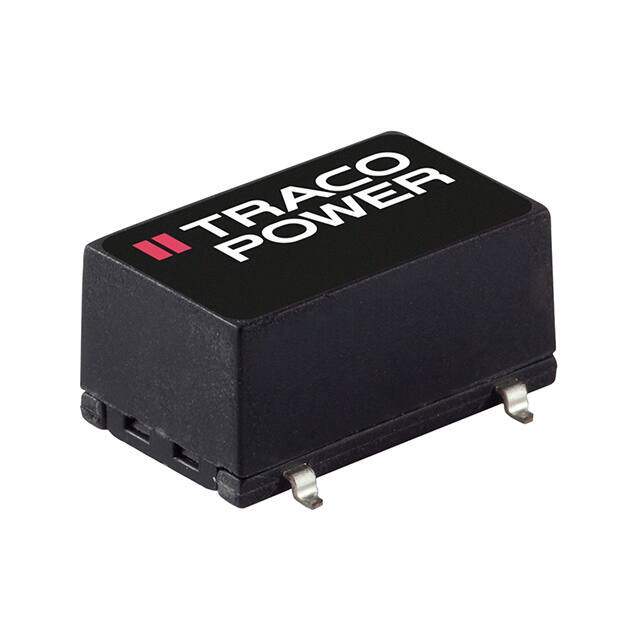

TSR 1-2415SM
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1.5V 1.5W
PDF
/
Buying Options
Total Price: USD $8.01
Unit Price: USD $8.006588
≥1 USD $8.006588
≥10 USD $7.553382
≥100 USD $7.125835
≥500 USD $6.722486
≥1000 USD $6.341959
Inventory: 1141
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Surface Mount
Package / Case 10-SMD Module, 6 Leads
Surface Mount YES
Technical
Operating Temperature -40°C~85°C With Derating
Published 2014
Series TSR 1SM
Size / Dimension 0.60Lx0.37W x 0.30 H 15.2mmx9.3mmx7.6mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Linear Regulator Replacement
Applications ITE (Commercial)
Power (Watts) 1.5W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-G6
Number of Outputs 1
Efficiency 79%
Voltage - Input (Max) 36V
Output Voltage 1.5V
Voltage - Output 1 1.5V
Voltage - Input (Min) 4.6V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 1A
Dimensions
Width 9.3mm
Compliance
RoHS Status ROHS3 Compliant
