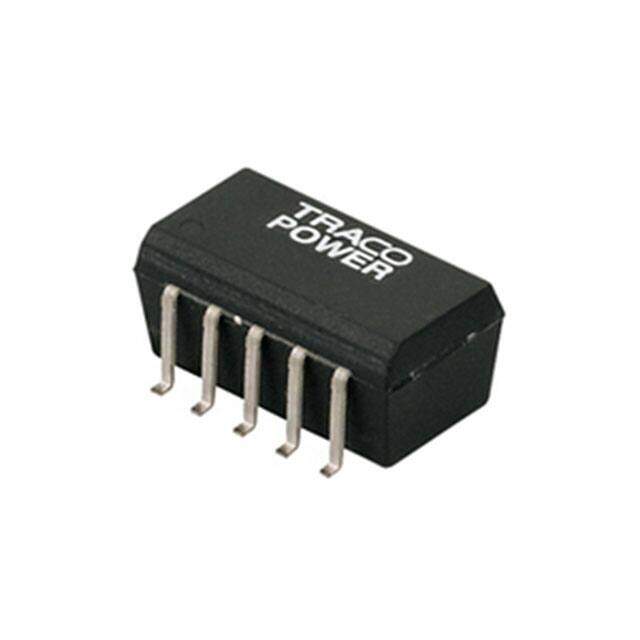

TSM 1215D
RoHS
RoHS compliant
RoHS compliantPackage 18-SMD Module, 10 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 900MW
PDF
/
Buying Options
Total Price: USD $9.35
Unit Price: USD $9.3544
≥1 USD $9.3544
≥10 USD $9.21448
≥100 USD $9.0728
≥500 USD $8.789264
≥1000 USD $7.938744
≥3000 USD $7.797011
Inventory: 141
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 8mm
Height Seated (Max) 7.3mm
Technical
Total Power Output-Max 1W
Voltage - Output 2 -15V
Current - Output (Max) 30mA 30mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 13.2V
Voltage - Isolation 1kV
Efficiency 80%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-PDMA-G10
Pin Count 18/10
Time@Peak Reflow Temperature-Max (s) 10
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 900mW
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.60Lx0.31W x 0.28 H 15.2mmx8.0mmx7.1mm
Series TSM (1W)
Published 2006
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 18-SMD Module, 10 Leads
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
