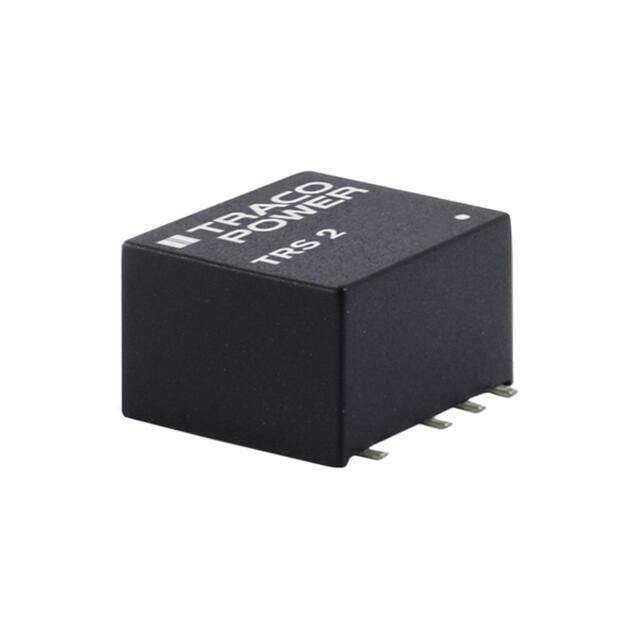

TRS 2-4810
RoHS
RoHS compliant
RoHS compliantPackage 7-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 1.7W
PDF
/
Buying Options
Total Price: USD $12.62
Unit Price: USD $12.62477
≥1 USD $12.62477
≥10 USD $11.91016
≥100 USD $11.236
≥500 USD $10.6
≥1000 USD $10
≥3000 USD $9.43396
Inventory: 5200
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 8.5mm
Height 8.5mm
Technical
Warm-up Time 0.005 s
Control Mode VOLTAGE-MODE
Current - Output (Max) 500mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 3.3V
Output Voltage 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 76%
Approval Agency UL, EN, IEC
Number of Outputs 1
JESD-30 Code R-PDMA-F7
Number of Functions 1
Terminal Form FLAT
Terminal Position DUAL
Technology HYBRID
Power (Watts) 1.7W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Feature SCP
Size / Dimension 0.47Lx0.44W x 0.31 H 11.9mmx11.3mmx8.0mm
Series TRS 2 (2W)
Operating Temperature -40°C~90°C With Derating
Physical
Surface Mount YES
Package / Case 7-SMD Module, 6 Leads
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
