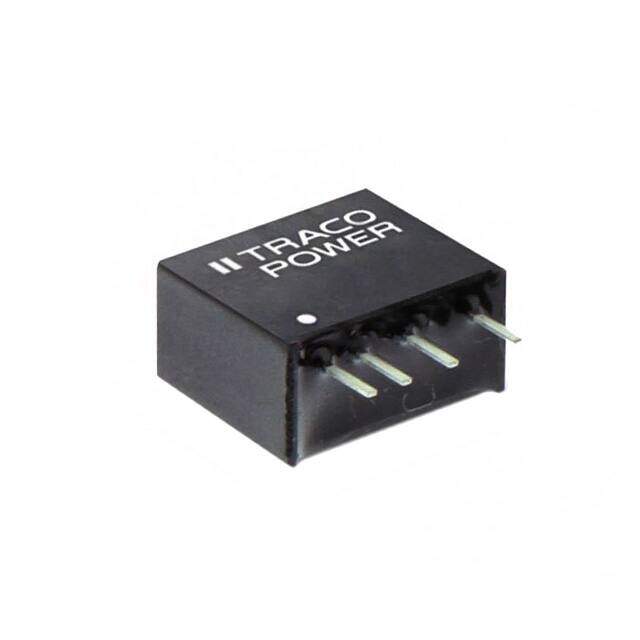

TRN 3-2421
RoHS
RoHS compliant
RoHS compliantPackage 5-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 3W
PDF
/
Inventory: 5658
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.7mm
Length 11.9mm
Height Seated (Max) 11.5mm
Technical
Total Power Output-Max 3W
Voltage - Output 2 -5V
Current - Output (Max) 300mA 300mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 36V
Voltage - Isolation 1.6kV
Efficiency 79%
Number of Outputs 2
JESD-30 Code R-PSMA-T5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
Size / Dimension 0.47Lx0.30W x 0.43 H 11.9mmx7.7mmx11.0mm
Series TRN 3 (3W)
Operating Temperature -40°C~85°C
Physical
Surface Mount NO
Package / Case 5-SIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
