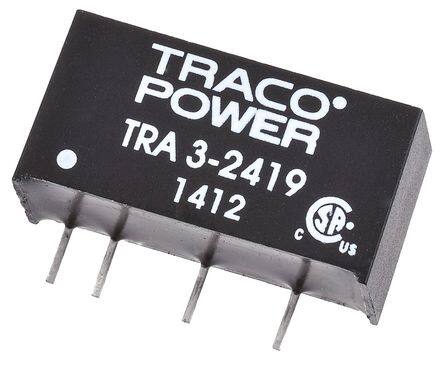

TRA 3-2419
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 9V 3W
PDF
/
Buying Options
Total Price: USD $9.15
Unit Price: USD $9.14835
≥1 USD $9.14835
≥10 USD $8.63052
≥100 USD $8.142
Inventory: 102
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.6mm
Technical
Total Power Output-Max 2.997W
Current - Output (Max) 333mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Voltage - Output 1 9V
Output Voltage 9V
Voltage - Input (Max) 26.4V
Voltage - Isolation 1kV
Efficiency 85%
Number of Outputs 1
JESD-30 Code R-PSMA-T4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
Size / Dimension 0.77Lx0.30W x 0.40 H 19.5mmx7.6mmx10.2mm
Series TRA 3 (3W)
Published 2013
Operating Temperature -40°C~95°C With Derating
Physical
Surface Mount NO
Package / Case 6-SIP Module, 4 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
