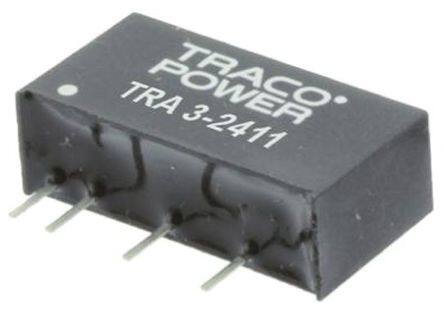

TRA 3-2411

Traco Power
RoHS
RoHS RoHS compliant
Package 6-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 3W
PDF
/
Buying Options
Total Price: USD $9.46
Unit Price: USD $9.46408
≥1 USD $9.46408
≥10 USD $8.92838
≥50 USD $8.423
Inventory: 54
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mounting Type Through Hole
Package / Case 6-SIP Module, 4 Leads
Surface Mount NO

Technical

Operating Temperature -40°C~95°C With Derating
Published 2013
Series TRA 3 (3W)
Size / Dimension 0.77Lx0.30W x 0.40 H 19.5mmx7.6mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 4
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 3W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSMA-T4
Number of Outputs 1
Efficiency 82%
Voltage - Isolation 1kV
Voltage - Input (Max) 26.4V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 21.6V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 600mA
Total Power Output-Max 3W

Dimensions

Width 7.6mm

Compliance

RoHS Status ROHS3 Compliant
