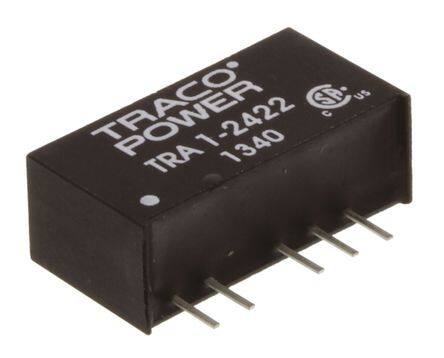

TRA 1-2422
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 1W
PDF
/
Inventory: 7346
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.1mm
Length 19.5mm
Height Seated (Max) 10.45mm
Technical
Total Power Output-Max 1W
Voltage - Output 2 -12V
Current - Output (Max) 42mA 42mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 26.4V
Voltage - Isolation 1kV
Efficiency 87%
Number of Outputs 2
JESD-30 Code R-PSMA-P5
Pin Count 6/5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.28W x 0.40 H 19.5mmx7.1mmx10.2mm
Series TRA 1 (1W)
Published 2012
Operating Temperature -40°C~95°C With Derating
Physical
Surface Mount NO
Package / Case 6-SIP Module, 5 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
