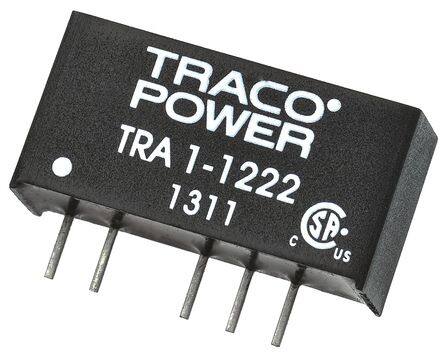

TRA 1-1222
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 1W
PDF
/
Inventory: 6724
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 6-SIP Module, 5 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~95°C With Derating
Published 2011
Series TRA 1 (1W)
Size / Dimension 0.77Lx0.24W x 0.40 H 19.5mmx6.1mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 1W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Number of Functions 1
JESD-30 Code R-PSMA-P5
Number of Outputs 2
Efficiency 88.5%
Voltage - Isolation 1kV
Voltage - Input (Max) 13.2V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 42mA 42mA
Voltage - Output 2 -12V
Total Power Output-Max 1W
Dimensions
Length 19.5mm
Width 6.1mm
Compliance
RoHS Status ROHS3 Compliant
