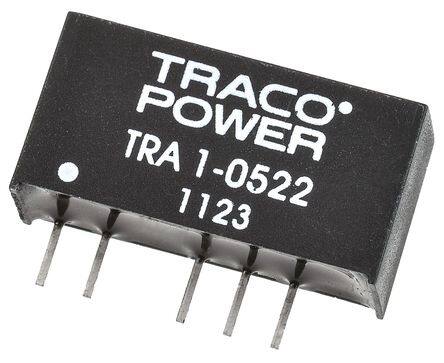

TRA 1-0522 image
Favorite
TRA 1-0522 image
Favorite

TRA 1-0522

Traco Power
RoHS
RoHS RoHS compliant
Package 6-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-12V 1W
PDF
/
Buying Options
Total Price: USD $6.33
Unit Price: USD $6.3272
≥1 USD $6.3272
≥10 USD $6.14944
≥100 USD $5.968864
≥500 USD $5.787936
≥1000 USD $5.607008
≥3000 USD $5.426115
Inventory: 22
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mounting Type Through Hole
Package / Case 6-SIP Module, 5 Leads
Surface Mount NO

Technical

Operating Temperature -40°C~95°C With Derating
Published 2011
Series TRA 1 (1W)
Size / Dimension 0.77Lx0.24W x 0.40 H 19.5mmx6.1mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 1W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Number of Functions 1
JESD-30 Code R-PSMA-P5
Number of Outputs 2
Efficiency 86.5%
Voltage - Isolation 1kV
Voltage - Input (Max) 5.5V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 42mA 42mA
Voltage - Output 2 -12V
Total Power Output-Max 1W

Dimensions

Length 19.5mm
Width 6.1mm

Compliance

RoHS Status ROHS3 Compliant
