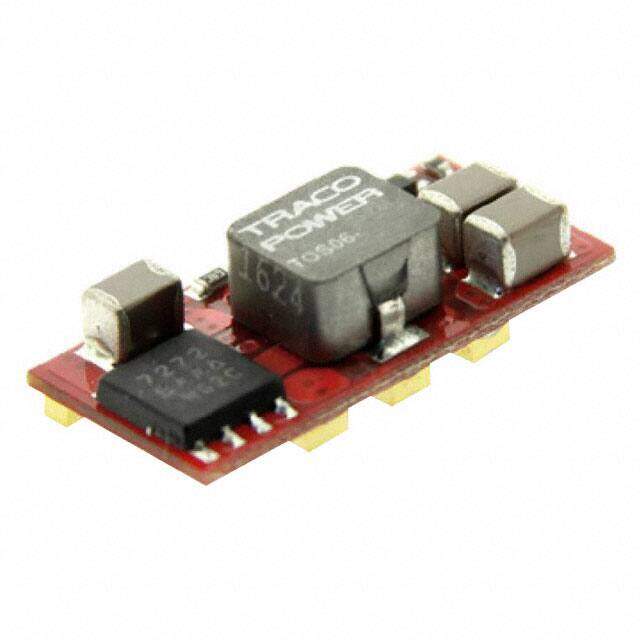

TOS 06-12SM
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.75-5V 30W
PDF
/
Buying Options
Total Price: USD $21.76
Unit Price: USD $21.76413
≥1 USD $21.76413
≥10 USD $20.5322
≥100 USD $19.37
Inventory: 106
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 33mm
Height Seated (Max) 8.28mm
Technical
Current - Output (Max) 6A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 8.3V
Voltage - Output 1 0.75V~5V
Voltage - Input (Max) 14V
Efficiency 89%
Number of Outputs 1
JESD-30 Code R-XDMA-N7
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 265
Terminal Form NO LEAD
Terminal Position DUAL
Technology HYBRID
Additional Feature SEIGHTED HGT NOM
Power (Watts) 30W
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Feature Remote On/Off, OCP, OTP, SCP
Size / Dimension 1.30Lx0.53W x 0.33 H 33.0mmx13.5mmx8.3mm
Series TOS
Published 2006
Operating Temperature -40°C~85°C
Physical
Surface Mount NO
Package / Case 5-SMD Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
