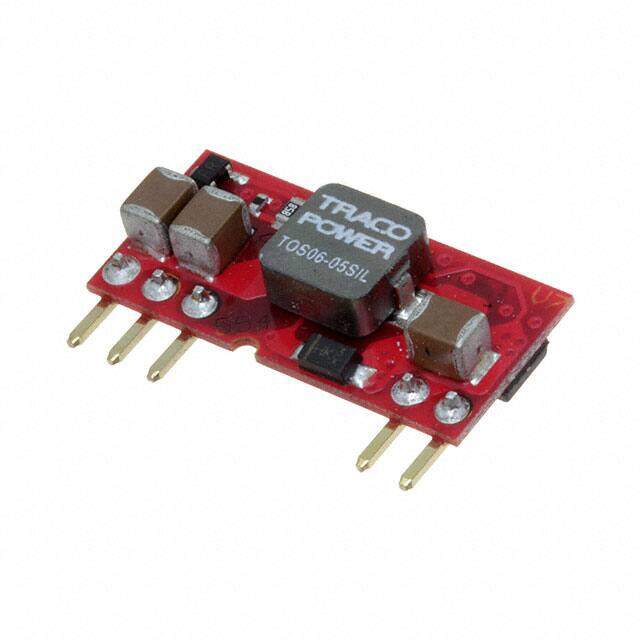

TOS 06-05SIL
RoHS
RoHS compliant
RoHS compliantPackage 5-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.75-3.3V 20W
PDF
/
Buying Options
Total Price: USD $18.39
Unit Price: USD $18.392
≥1 USD $18.392
≥10 USD $17.51992
≥100 USD $17.24624
≥500 USD $16.42498
≥1000 USD $15.056254
≥3000 USD $14.782504
Inventory: 183
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 5-SIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C
Published 2010
Series TOS
Size / Dimension 0.90Lx0.23W x 0.40 H 22.9mmx6.0mmx10.2mm
Feature Remote On/Off, OCP, OTP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 11
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power (Watts) 20W
Additional Feature SEIGHTED HGT NOM
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Efficiency 94%
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.75V~3.3V
Voltage - Input (Min) 2.4V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Current - Output (Max) 6A
Dimensions
Height Seated (Max) 8.28mm
Length 50.8mm
Compliance
RoHS Status ROHS3 Compliant
