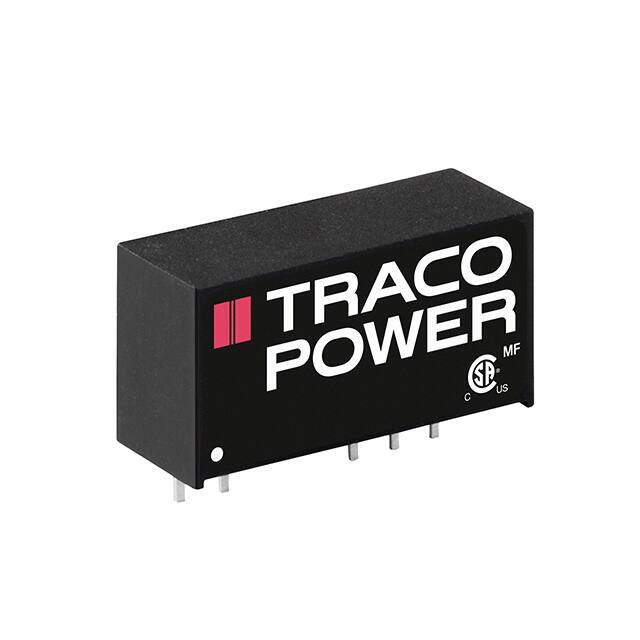

TMV 2-1512DHI image
Favorite
TMV 2-1512DHI image
Favorite

TMV 2-1512DHI

Traco Power
RoHS
RoHS RoHS compliant
Package 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-12V 2W
PDF
/
Inventory: 9596
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 7.5mm
Length 19.5mm
Height Seated (Max) 10.7mm

Technical

Total Power Output-Max 2W
Voltage - Output 2 -12V
Current - Output (Max) 84mA 84mA
Trim/Adjustable Output NO
Input Voltage-Nom 15V
Voltage - Input (Min) 13.5V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 16.5V
Voltage - Isolation 5.2kV
Efficiency 82%
Number of Outputs 2
JESD-30 Code R-XSMA-T5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
Size / Dimension 0.77Lx0.30W x 0.40 H 19.5mmx7.5mmx10.2mm
Series TMV 2HI (2W)
Published 2015
Operating Temperature -40°C~85°C With Derating

Physical

Surface Mount NO
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole

Supply Chain

Factory Lead Time 11 Weeks
