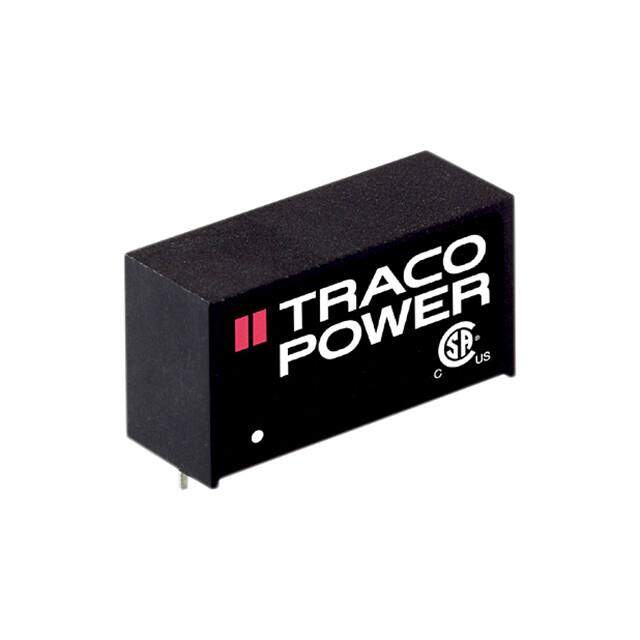

TMV 2-1505SHI
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 2W
PDF
/
Buying Options
Total Price: USD $9.88
Unit Price: USD $9.8824
≥1 USD $9.8824
≥10 USD $9.73456
≥100 USD $9.58496
≥500 USD $9.285232
≥1000 USD $8.386752
≥3000 USD $8.236941
Inventory: 113
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.5mm
Technical
Total Power Output-Max 2W
Current - Output (Max) 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 15V
Voltage - Input (Min) 13.5V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 16.5V
Voltage - Isolation 5.2kV
Efficiency 79%
Number of Outputs 1
JESD-30 Code R-XSMA-T5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
Size / Dimension 0.77Lx0.30W x 0.40 H 19.5mmx7.5mmx10.2mm
Series TMV 2HI (2W)
Published 2015
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 7-SIP Module, 4 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
