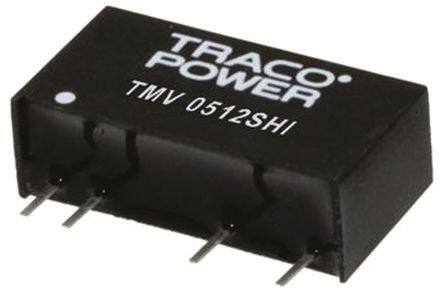

TMV 0512DHI
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 1W
PDF
/
Buying Options
Total Price: USD $8.98
Unit Price: USD $8.976
≥1 USD $8.976
≥10 USD $8.66624
≥100 USD $8.53248
≥500 USD $8.26584
≥1000 USD $7.46592
≥3000 USD $7.332582
Inventory: 1130
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Technical
Operating Temperature -40°C~95°C With Derating
Published 2014
Series TMV-HI (1W)
Size / Dimension 0.77Lx0.30W x 0.40 H 19.5mmx7.5mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 1W
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 2
Efficiency 77%
Voltage - Isolation 5.2kV
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Voltage - Input (Min) 4.5V
Current - Output (Max) 42mA 42mA
Voltage - Output 2 -12V
Compliance
RoHS Status ROHS3 Compliant
