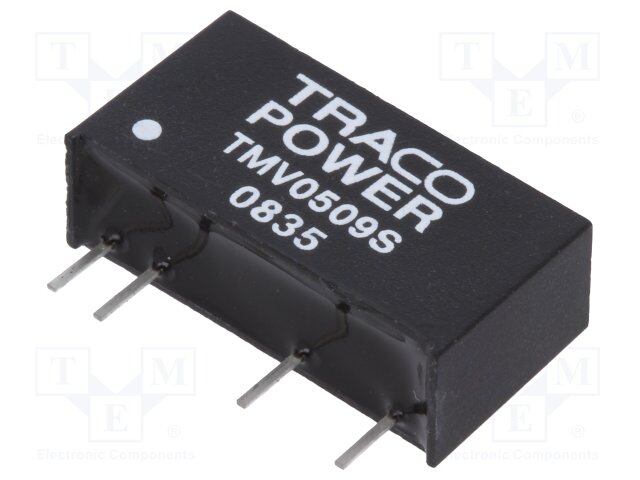

TMV 0509S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 9V 1W
PDF
/
Inventory: 8310
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Part Status Active
Feature SCP
Size / Dimension 0.77Lx0.24W x 0.40 H 19.5mmx6.1mmx10.2mm
Series TMV (1W)
Published 2015
Operating Temperature -40°C~85°C With Derating
Total Power Output-Max 0.99W
Current - Output (Max) 111mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 9V
Output Voltage 9V
Voltage - Input (Max) 5.5V
Voltage - Isolation 3kV
Efficiency 75%
Number of Outputs 1
JESD-30 Code R-PSMA-T5
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Physical
Surface Mount NO
Package / Case 7-SIP Module, 4 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
Compliance
RoHS Status ROHS3 Compliant
