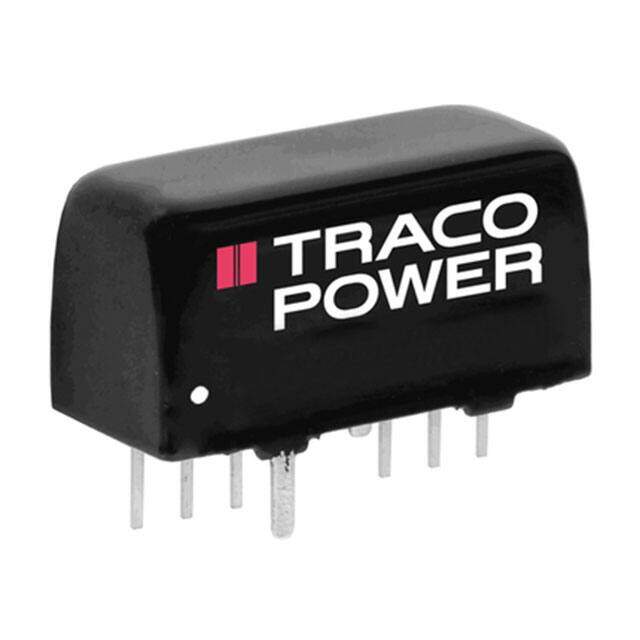

TMR 9-4823
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 9W
PDF
/
Inventory: 6132
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9.6mm
Height Seated (Max) 11.7mm
Technical
Total Power Output-Max 9W
Voltage - Output 2 -15V
Current - Output (Max) 300mA 300mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 87%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-MSMA-T6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 9W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 0.86Lx0.38W x 0.44 H 21.8mmx9.6mmx11.2mm
Series TMR 9 (9W)
Published 2015
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 8-SIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
