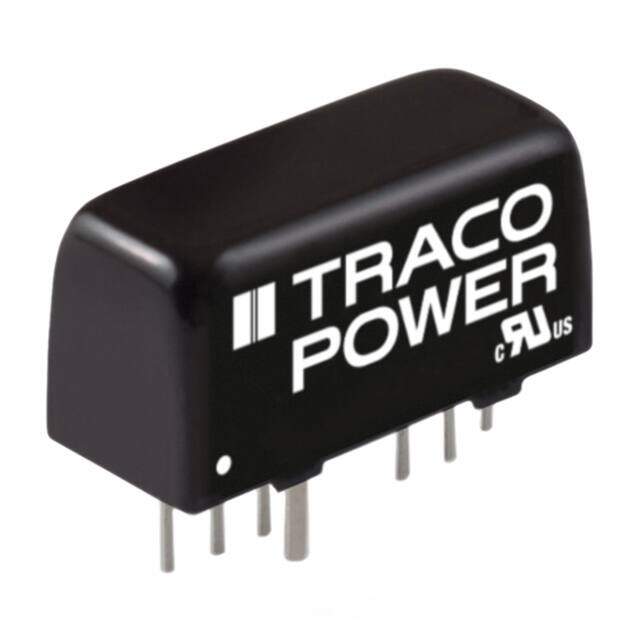

TMR 6-4812WIR
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 6W
PDF
/
Buying Options
Total Price: USD $26.89
Unit Price: USD $26.8928
≥1 USD $26.8928
≥10 USD $26.4792
≥100 USD $26.065248
≥500 USD $24.824096
≥1000 USD $22.75548
≥3000 USD $22.341757
Inventory: 32
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 8-SIP Module
Technical
Operating Temperature -40°C~80°C With Derating
Series TMR 6WIR (6W)
Size / Dimension 0.86Lx0.38W x 0.44 H 21.8mmx9.6mmx11.2mm
Feature Remote On/Off, OCP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Applications ITE (Commercial), Railway
Power (Watts) 6W
Number of Outputs 1
Efficiency 87%
Voltage - Isolation 3kV
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Input (Min) 18V
Current - Output (Max) 500mA
Compliance
RoHS Status ROHS3 Compliant
