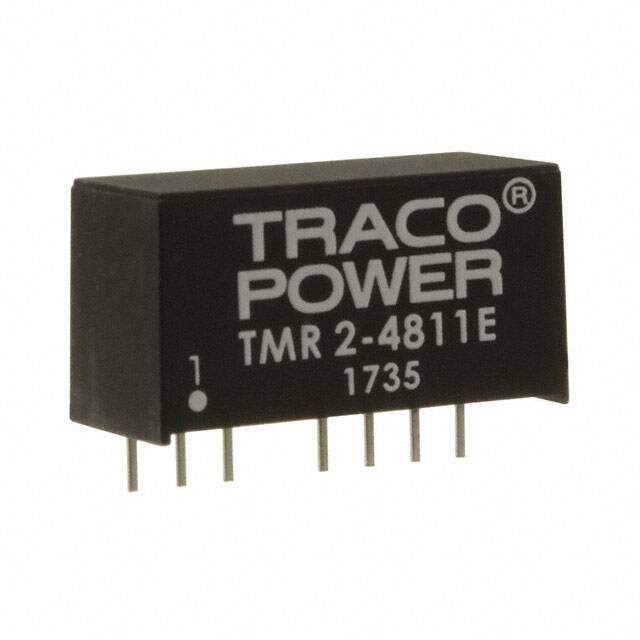

TMR 2-4811E
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 2W
PDF
/
Buying Options
Total Price: USD $26.51
Unit Price: USD $26.51202
≥1 USD $26.51202
≥10 USD $25.01134
≥100 USD $23.5956
≥500 USD $22.26
≥1000 USD $21
≥3000 USD $19.81132
Inventory: 1390
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9.3mm
Technical
Total Power Output-Max 2W
Current - Output (Max) 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 75V
Voltage - Isolation 1kV
Efficiency 73%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PSMA-T7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Remote On/Off, SCP
Size / Dimension 0.86Lx0.37W x 0.44 H 21.8mmx9.3mmx11.2mm
Series TMR 2E (2W)
Published 2012
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
