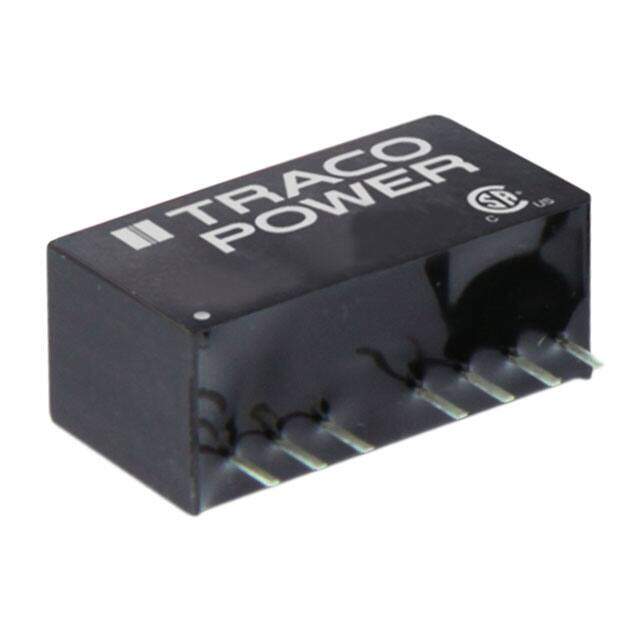

TMR 2-2410WIN
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 1.7W
PDF
/
Buying Options
Total Price: USD $13.18
Unit Price: USD $13.1824
≥1 USD $13.1824
≥10 USD $12.9844
≥100 USD $12.78464
≥500 USD $12.384944
≥1000 USD $11.186472
≥3000 USD $10.986694
Inventory: 133
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9.3mm
Technical
Current - Output (Max) 500mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Voltage - Output 1 3.3V
Output Voltage 3.3V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 75%
Number of Outputs 1
JESD-30 Code R-PSMA-T7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 1.7W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, OCP, SCP
Size / Dimension 0.86Lx0.44W x 0.37 H 21.8mmx11.2mmx9.3mm
Series TMR 2WIN (2W)
Published 2014
Operating Temperature -40°C~90°C With Derating
Physical
Surface Mount NO
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
