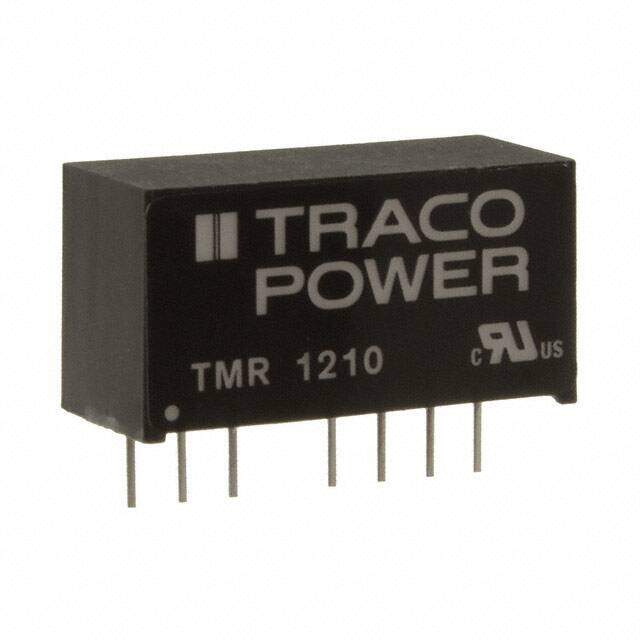

TMR 1210
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 1.7W
PDF
/
Buying Options
Total Price: USD $13.49
Unit Price: USD $13.4904
≥1 USD $13.4904
≥10 USD $13.288
≥100 USD $13.083136
≥500 USD $12.674288
≥1000 USD $11.447744
≥3000 USD $11.243302
Inventory: 199
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9.2mm
Technical
Total Power Output-Max 2W
Current - Output (Max) 500mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 9V
Voltage - Output 1 3.3V
Output Voltage 3.3V
Voltage - Input (Max) 18V
Voltage - Isolation 1.5kV
Efficiency 77%
Number of Outputs 1
JESD-30 Code R-PSMA-T7
Pin Count 8/7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 1.7W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Remote On/Off, SCP
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.2mmx11.1mm
Series TMR 2 (2W)
Published 2007
Operating Temperature -40°C~85°C
Physical
Surface Mount NO
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
